3402184480

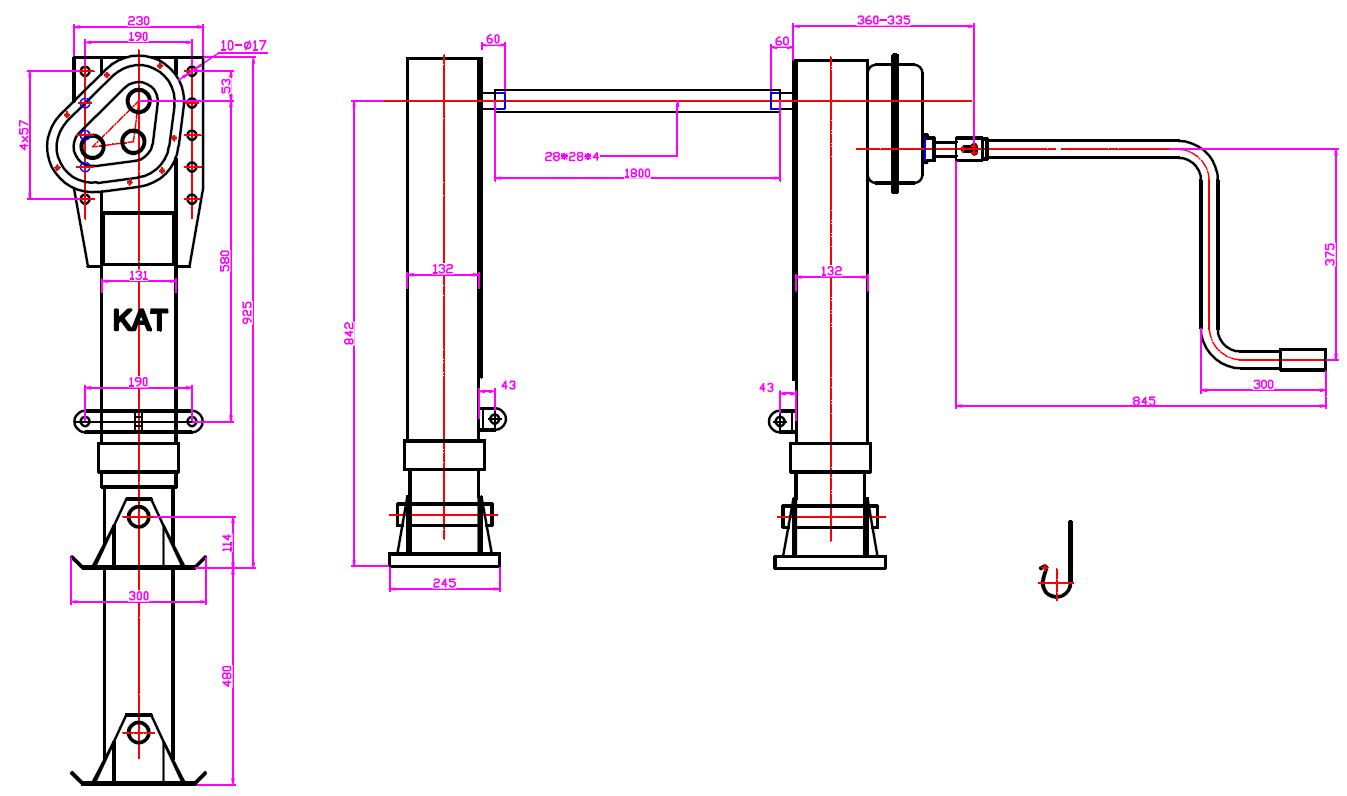

"landing gear with cross shaft"
| Specifications | |
|---|---|
| Reference | KLG-O-S-8448 |
| Reference | OGB-19-S |
| Static load capacity (t/set) | 80 Ton |
| Lifting capacity (t/set) | 28 Ton |
| High Gear (mm/r) | 5,6 |
| Low Gear (mm/r) | 0,75 |
| Travel Max (mm) | 480 |
| Assembly Height (mm) | 842 |
| Standard Weight (kg/set) | 104 |
| Crank Force (kg) | 22 |
| Weight | 98 kg |
| Pallet QTY | 10 |
| EAN Number | 4251796904195 |
| OE Comparison | |
|---|---|
| KAT |
|
