3402178431

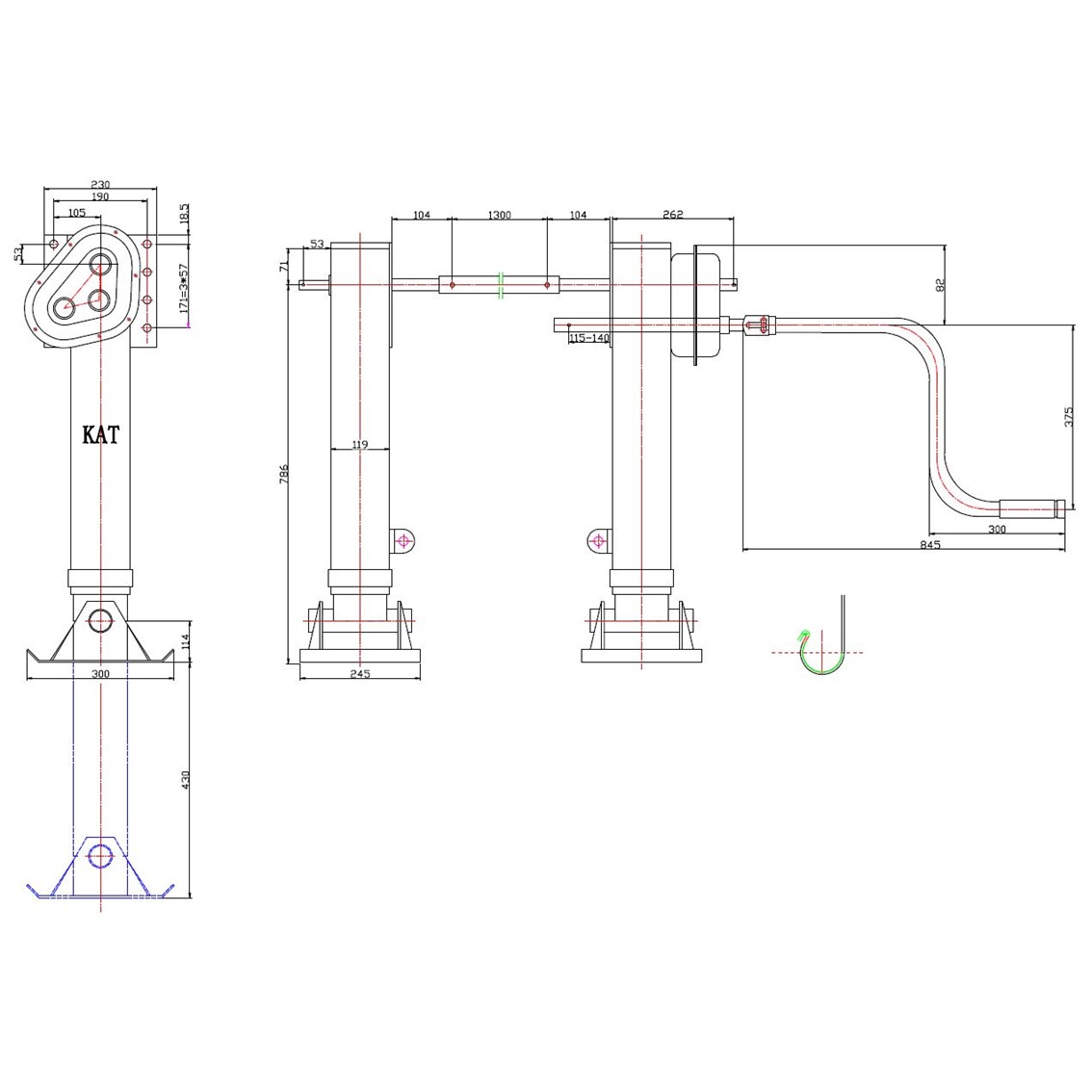

"landing gear with cross shaft"
| Specifications | |
|---|---|
| Reference | KLG-O-S-RM-7843 |
| Reference | OGB-17-SRM |
| Static load capacity (t/set) | 80 Ton |
| Lifting capacity (t/set) | 28 Ton |
| High Gear (mm/r) | 6 |
| Low Gear (mm/r) | 0,79 |
| Travel Max (mm) | 430 |
| Assembly Height (mm) | 786 |
| Standard Weight (kg/set) | 96 |
| Crank Force (kg) | 22 |
| Weight | 96 kg |
| Pallet QTY | 10 |
| EAN Number | 4251796904218 |
| OE Comparison | |
|---|---|
| KAT |
|
