3401282440

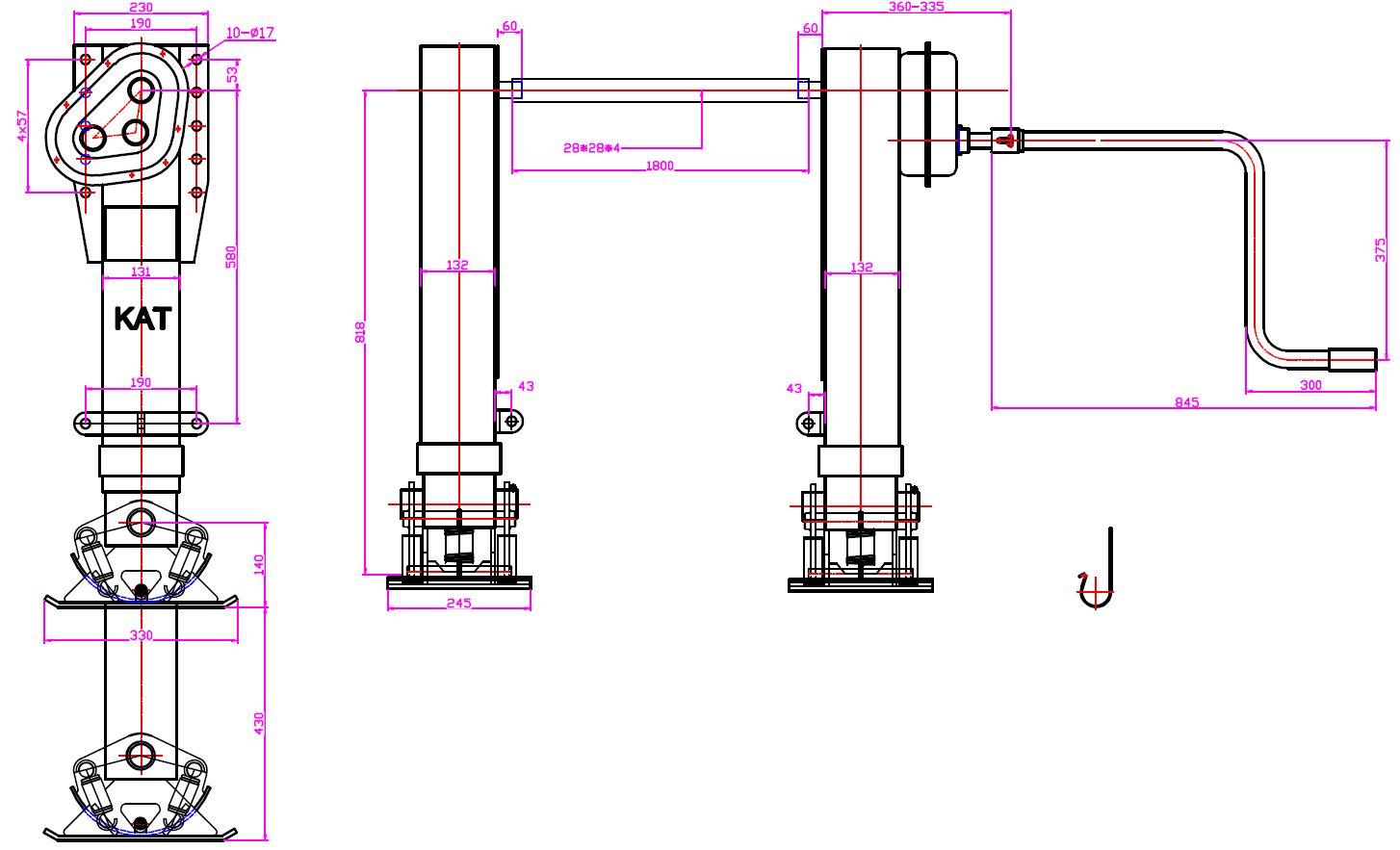

"landing gear with cross shaft"
| Specifications | |
|---|---|
| Reference | KLG-I-C-8244 |
| Reference | IGB-17-C |
| Static load capacity (t/set) | 80 Ton |
| Lifting capacity (t/set) | 28 Ton |
| High Gear (mm/r) | 7,7 |
| Low Gear (mm/r) | 0,76 |
| Travel Max (mm) | 440 |
| Assembly Height (mm) | 800 |
| Standard Weight (kg/set) | 113 |
| Crank Force (kg) | 22 |
| Weight | 104 kg |
| Pallet QTY | 10 |
| EAN Number | 4251796904164 |
| OE Comparison | |
|---|---|
| KAT |
|
